Coin vibration motor C1434

Flat motor, button motor, button motor for eye protection device

Diameter 14mm*34mm

strong vibration used for massager.

Model：1434mm
Rated voltag： 3.0V DC
Start voltage：2.3V max
Work voltage:1.5V-4.2V AC

characteristics
vibration：1.8 G MIN
vibration direction：±X，±Y，±Z，
Rated current：90 mA max
Life：86,400 cycle

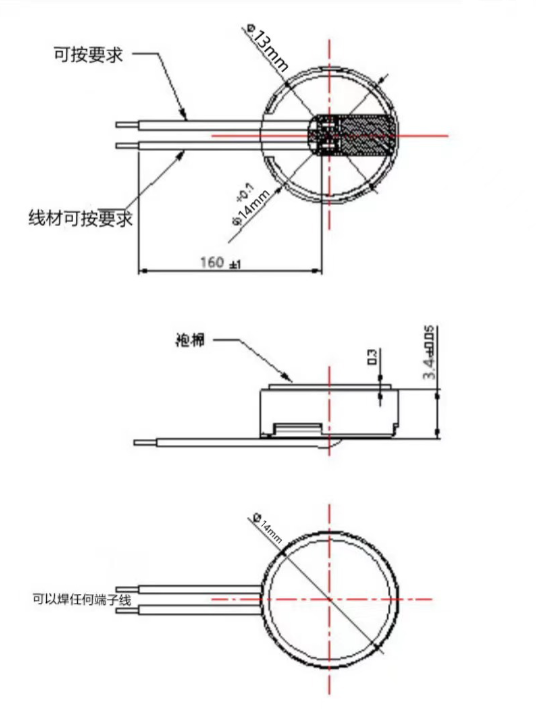

Coin vibration motor dimention:

Application:

Ji Fei has a full set of micro vibration testing procedures, equipment and

aboratories, all parts and final products are repeatedly tested for quality, and

can perform reliability tests according to customer technical requirements to ensure

the stability of product performance.
