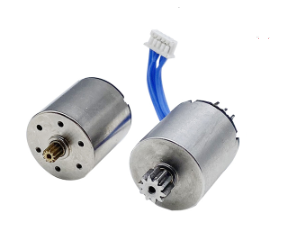

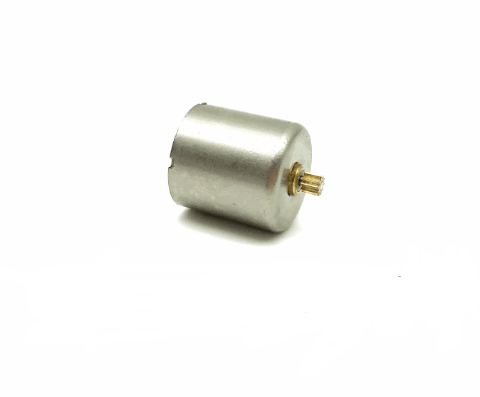

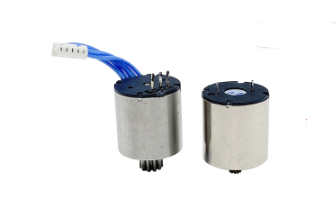

Coreless Brushless Motor B1718
Category: BLDC motor  Publish Time: 2023-06-12 15:56

Coreless Brushless Motor B1718
Coreless Brushless DC Motor B1718 brushless coreless diameter 17mm length 18mm High torque low current low heat generation

Coreless Brushless DC Motor B1718

Advantage for 1718 BLDC motor:


  • Radial rotation/circumferential rotation (flat)
  • Low noise and low power consumption
  • Strong seismic sensation with simple structure
  • Strong reliability and short response time
  • Small inertia and sensitive start




Characteristics  for B1718 BLDC motor:

voltage no load current(shaft 1.5mm)  out power max   no load speed  resistance  stall torque friction torque
3V 0.095A 1.9W 14000RPM 1.07OHM 5.37mNm 0.18mNm
6V 0.049A 1.92W 14000RPM 4.3OHM 5.34mNm 0.18mNm
12V 0.027A 1.4W 14000RPM 17.1OHM 5.38mNm 0.18mNm
24V 0.018A 1.93W 14000RPM 68.8OHM 5.36mNm 0.17mNm

Drawing for B1718 BLDC motor:



Application for BLDC motor:drone,medical device.smart lock,electric tool,electric toothbrush..

Color:silver,black and colorful is customized.
