Q Spring coin motor 1030 button motor
Category: Ø10 Button Motor  Publish Time: 2022-03-21 09:28

Q Spring coin motor 1030 button motor

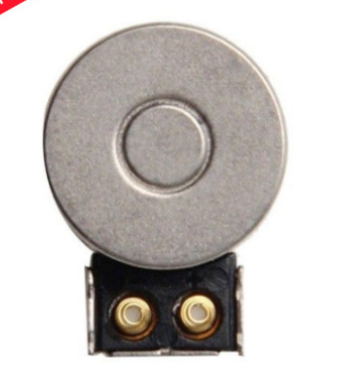

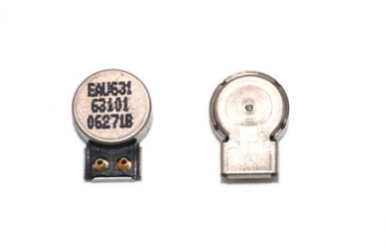

Spring contact coin vibration motor,easy for assembling. 3V or 2V LG mobile motor

LQ Coin motor 1030 Spring Coin Vibration Motor




   SPEC



10φx3.0T









Electrical Characteristics




Rated rotary speed ：9000RPM MIN

Rated current：80MA  MAX

instantaneous starting voltage：1.1V

Rated Voltage：2.0V

Terminal resistance ：17Ω±20％

                                    32Ω±20％


This type of motor is Q Coin motor 1030QPFS assembled in the phone without lead wire,least starting voltage and starting time , the lowest cost for the customers.


No lead wire but only spring contact make asseble easily.And this type coin vibration motor is in long life of 20W times.
















by ji fei holding limited

www.vibrationmotor.net
