Vibration Motor Type

Types of Vibration Motor:

1 Cylindrical  vibration motor;

2 Flat button vibration motor;

The type and application of mobile motor:

1 Wire type: manual welding and with two types of connector socket;
Low cost of materials, manufacturers need to increase the manual welding assembly process, higher labor costs;

2 Spring contact type; the need for special structural design, can be replaced;

3 Patch type: divided into planar patch and heavy plate patch type two; early motor designers cannot be reduced to the minimum thickness of the motor to meet the requirements of the development of ultra-thin mobile phone, and the board, saves the thickness of the PCB space. Because of the high temperature reflow soldering, so the relevant material requirements are higher, the  corresponding quality is the best of all types of motor, but also the international brand of mobile phones respected material.

The size of the flat motor is as follows: (diameter + thickness, such as 08 indicates that the diameter is 8MM, and the thickness of 2.7MM is 27)
0720,0820,0827, 0830, 08341020, 1027, 1030, 1034,1227, 1234

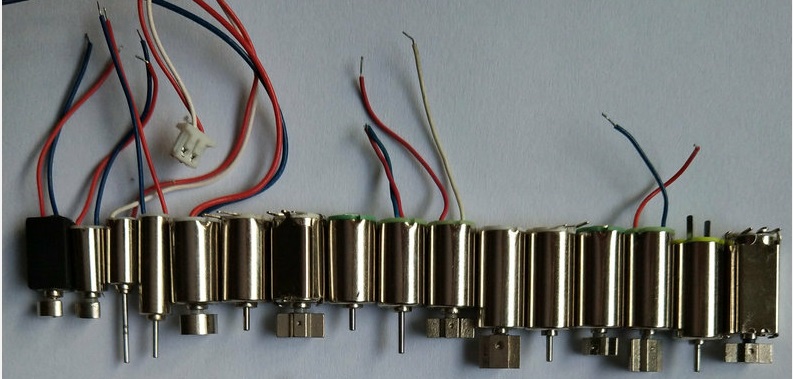

Cylindrical motor dimensions are as follows: (L * w * h)
11*4.5*3.4mm; 11*4.3*4.5mm; 12*4.5*4.5mm; 13*4.4*4.5mm

Drive motor mostly for toy have 4*8mm,4*10mm,4*11mm,4*14mm.

Also newest SMT motor, linear motor is available.

With Love

By Jifei Holing Limited

www.vibrationmotor.net
